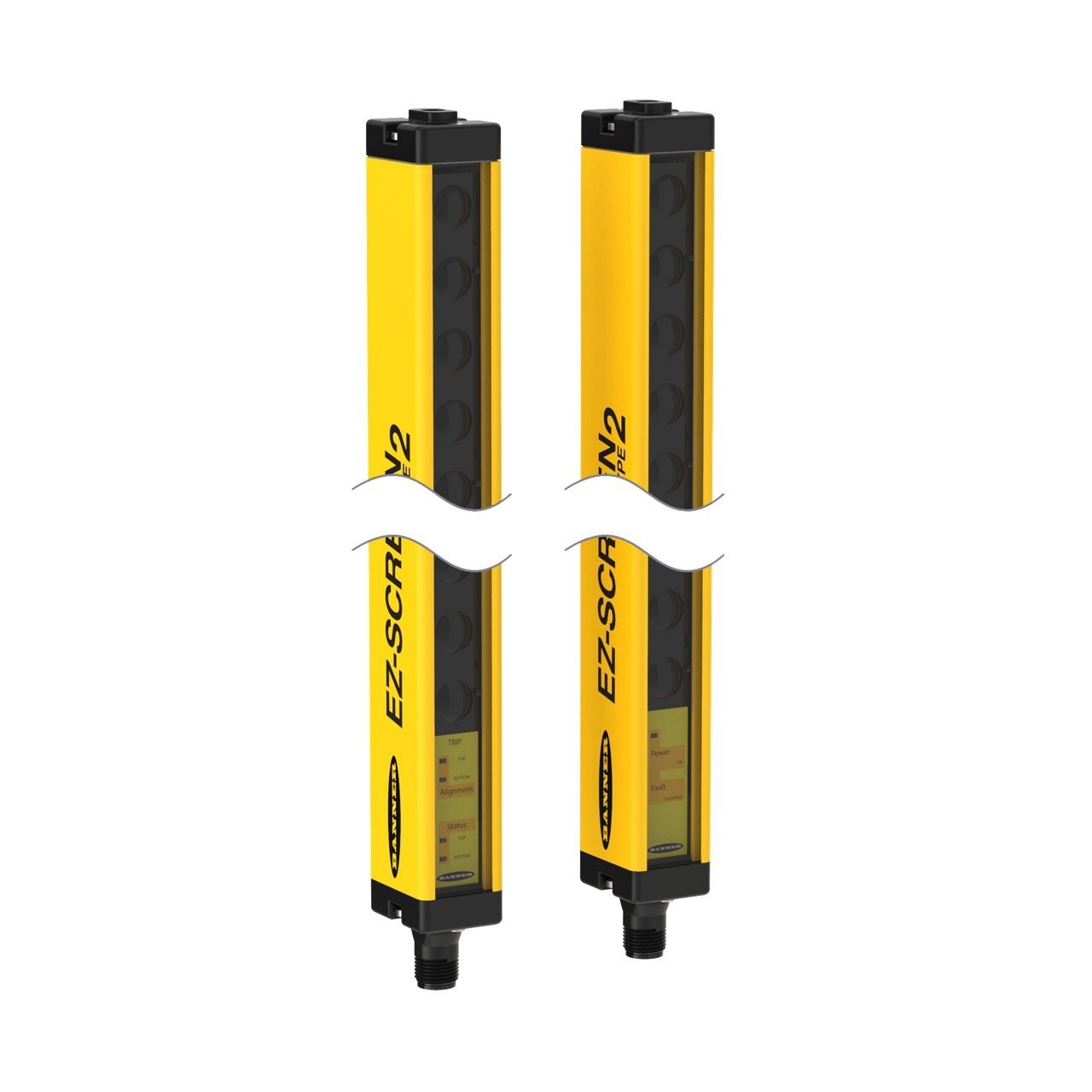

| System Type | Receiver + Emitter | ||||
| Primary Housing Material | Aluminum | ||||
| Resolution | 30 mm | ||||
| Defined Area Height | 900 mm | ||||
| Dimensions | W 25.4 x D 31.8 mm | ||||
| Overall Length | 964 mm | ||||
| IP Rating | IP65 | ||||
| Operating Distance | 0.2 - 15 m | ||||
| Operating Voltage | 24 VDC | ||||
| Safety Level | Type 2 | ||||
| SIL Rating | SIL2/CL2 | ||||
| OSSD Rating | 24 V dc at 0.5 A each | ||||
| Connector Type | M12 | ||||
